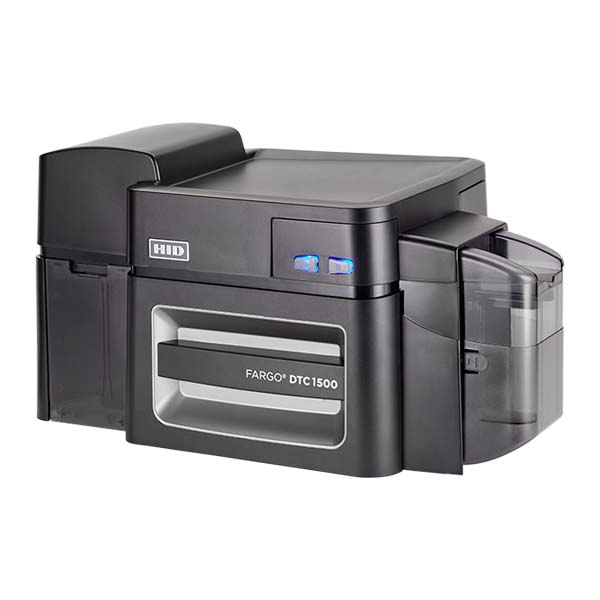

HID FARGO DTC1500 Plastic ID Card Printer

HID FARGO Direct-to-Card ID Card Printer

• Print Method : Dye Sublimation / Resin thermal transfer
• Resolution : 300 dpi (11.8 dots/mm) continuous tone
• Colors : Up to 16.7 million / 256 shades per pixel
• Print Ribbon Options : Wide array of ECO-friendly, high-capacity print ribbons from K to YMCKOKO. Laminate patch options from full
  card coverage and half panel polyester overlaminates to off-the-shelf and fully custom holographic overlaminates are all available
  from HID. Available print ribbons include:
  – Full-color with resin black and overlay panel, YMCKO*, 500 prints
  – Full-color with two resin black panels and overlay panel, YMCKOK*, 500 prints
  – Full-color with two resin black panels, YMCKK*, 500 prints
  – Full-color half-panel with resin black and overlay panel, YMCKO*, 850 prints
  – Full-color half-panel with two resin black panels and overlay panel, YMCKOK*, 650 prints
  – Full-color half-panel with two resin black panels and overlay panels, YMCKOKO*, 500 prints
  – Resin black, K*, 3000 prints
• Print Speed** : 6 seconds per card (K*); 16 seconds per card (YMCKO*); 24 seconds per card (YMCKOK*)
• Accepted Standard Card Sizes : CR-80 (3.375˝L x 2.125˝W / 85.6 mm L x 54 mm W); CR-79 (3.313″ L x 2.063″ W / 84.1 mm L x 52.4 mm W)
• Print Area : CR-80 edge-to-edge (3.36˝L x 2.11˝W / 85.3 mm L x 53.7 mm W); CR-79 (3.3″ L x 2.04″ W / 83.8 mm L x 51.8 mm W)
• Accepted Card Thickness : .009˝ – .040˝ / 9 mil – 40 mil / .229 mm – 1.016 mm
• Accepted Card Types : PVC or polyester cards with polished PVC finish; monochrome resin required for 100% polyester cards; optical memory cards with PVC finish; rewrite
• Input Hopper Card Capacity : 100 cards (.030˝ / .762 mm)
• Output Hopper Card Capacity : Up to 30 cards (.030˝ / .762 mm)
• Card Cleaning : Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change
• Memory : 32 MB RAM
• Software Drivers : Windows® 7, 8, 8.1 and 10 (32 bit & 64 bit) / Windows Server 2003, 2008, 2012
• Interface : USB 2.0, Standard Ethernet with internal print server (Note: Ethernet optional on BIS-Certified Units)
• Supply Voltage : 100-240Vac, 50-60Hz, 1.6 Amps max
• Supply Frequency : 50 Hz / 60 Hz
• Dimensions :
  Printer: 9.8″ H x 18.7″ W x 9.2″ D / 249 mm H x 475 mm W x 234 mm D
  Printer + lam: 18.9″ H x 18.7″ W x 9.2″ D / 480 mm H x 475 mm W x 234 mm D
• Weight : Printer: 11 lbs / 5 Kg, Printer + lam: 20 lbs / 9.1 Kg
• Warranty : Printer – three years; printhead – three years, unlimited pass with UltraCard®
